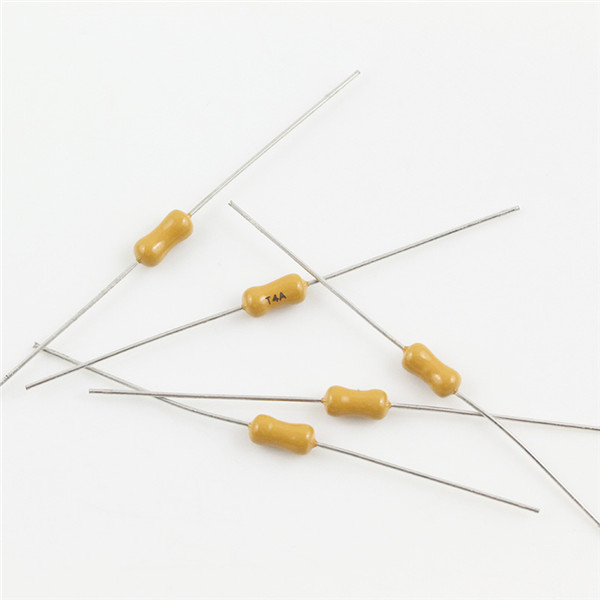

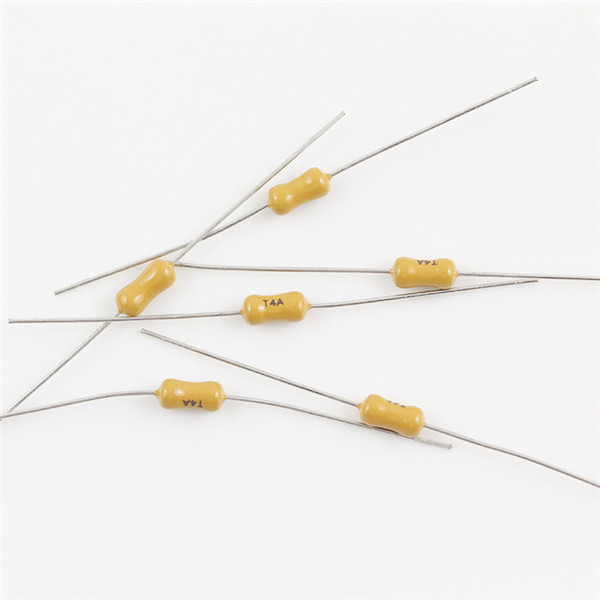

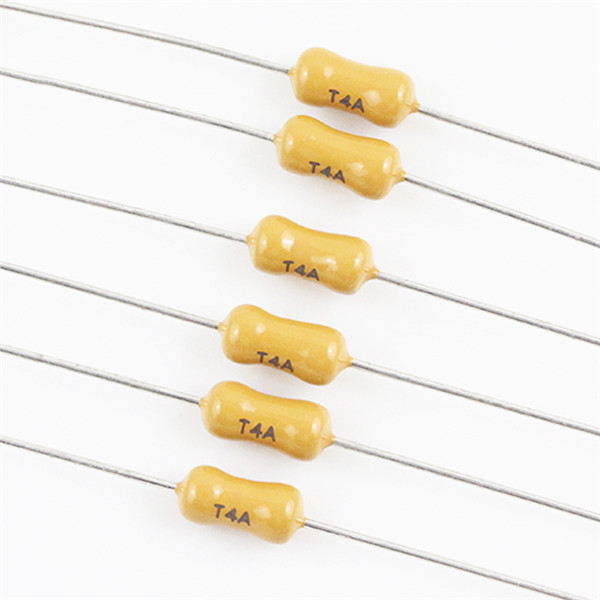

集電通JFP系列電阻式保險絲，屬于延時熔斷保險絲，也是一次性保險絲，它適用于各種類型的電子器件過電流保護電路，主要用于照明、電源和適配器工業等領域中。在空間有限的超小封裝中滿足各種性能特性而設計。

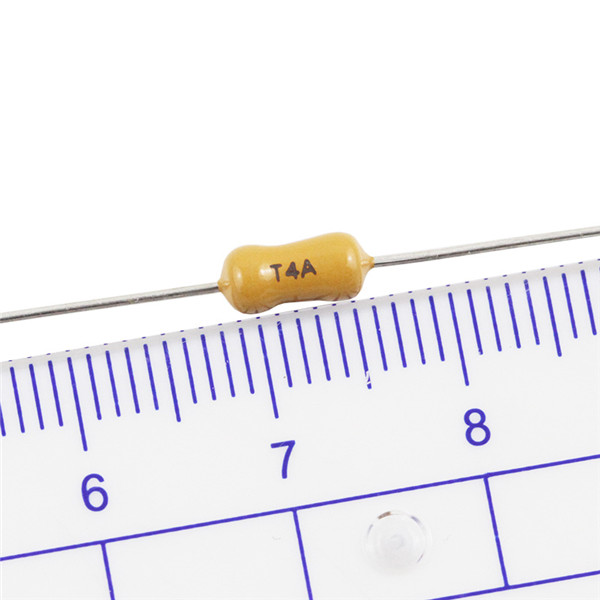

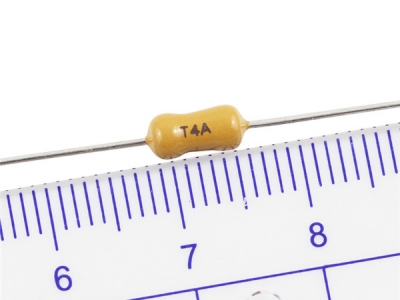

主要功能與特色有:尺寸小巧，寬額定電流范圍（100mA- 6.3A），符合RoHS標準，不含鹵素，工作溫度范圍廣泛-55℃到125℃。
| Part No. | Ampere Rating (A) | Voltage Rating (V) | Breaking Capacity | I2t melting Integral(A2 S) |
| JFP0100TL | 0.10 | 250/125 | 50A@125/250V AC | 0.01 |
| JFP0125TL | 0.125 | 0.02 | ||
| JFP0160TL | 0.16 | 0.04 | ||
| JFP0200TL | 0.20 | 0.06 | ||
| JFP0250TL | 0.25 | 0.09 | ||
| JFP0300TL | 0.30 | 0.12 | ||
| JFP0315TL | 0.315 | 0.15 | ||
| JFP0375TL | 0.375 | 0.19 | ||
| JFP0400TL | 0.40 | 0.31 | ||
| JFP0500TL | 0.50 | 0.46 | ||
| JFP0630TL | 0.63 | 0.78 | ||
| JFP0750TL | 0.75 | 0.93 | ||
| JFP0800TL | 0.80 | 1.10 | ||
| JFP1100TL | 1.00 | 1.30 | ||
| JFP1125TL | 1.25 | 2.60 | ||
| JFP1150TL | 1.50 | 3.10 | ||
| JFP1160TL | 1.60 | 3.90 | ||
| JFP1200TL | 2.00 | 7.20 | ||
| JFP1250TL | 2.50 | 12.0 | ||
| JFP1300TL | 3.00 | 15.0 | ||
| JFP1315TL | 3.15 | 19.0 | ||
| JFP1350TL | 3.50 | 24.0 | ||
| JFP1400TL | 4.00 | 29.0 | ||
| JFP1500TL | 5.00 | 59.0 | ||
| JFP1630TL | 6.30 | 90.0 | ||
| JFP1700TL | 7.00 | 145 |
JFP-T電阻式保險 規格書
UL認證
