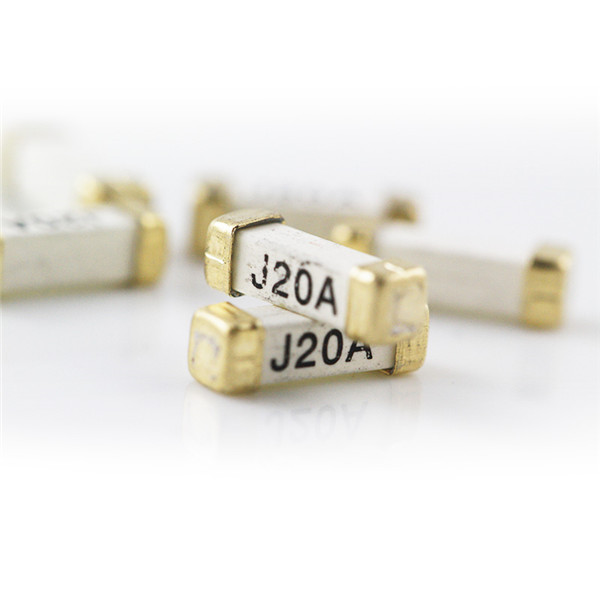

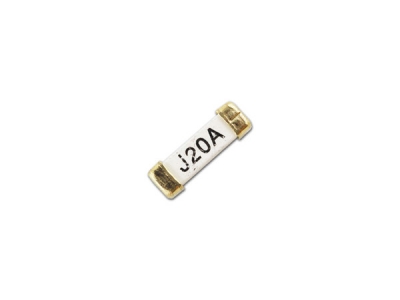

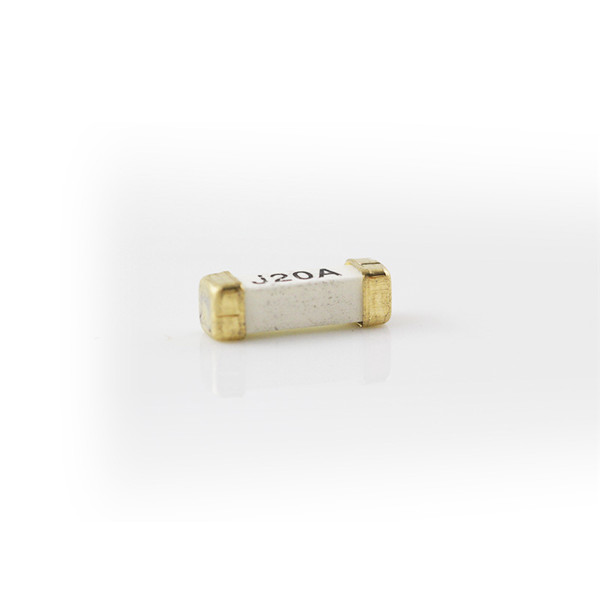

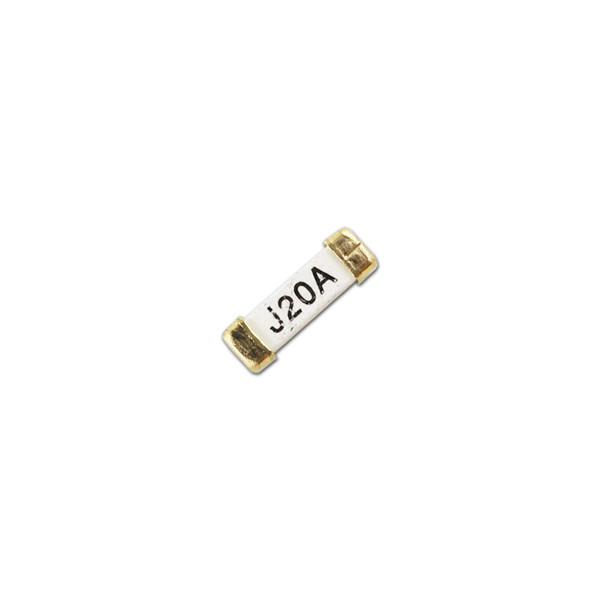

集電通JFC1245系列產品為方形表面貼裝保險絲，主要專為高端云計算服務器、電信基站電源、Bang-Cu鏈服務和新能源汽車電池管理系統設計打造的。此產品符合RoHS標準、無鹵素、無鉛。VE（2002/95 / EC），與美國（UL/CSA）安全機構批準。廣泛應用于初級、次級電路板進行電路保護 。具有良好的抗浪涌能力。主要性能特征是快速熔斷；高額定電流。
JFC1245FS快斷 規格書JFC1245TS慢斷 規格書
| Part No. | Rated Current (A) | Max Voltage Rating (V) | Breaking Capacity | Typical Cold. Resistance (mΩ) | Typical Pre-Arcing I2t (A2 S) |
| JFC1245-1100FS | 1.00 | 250V DC 600V AC | 1KA@32V DC 500A@72V DC 300A@125V DC 100A@250V DC 100A@600V AC | 82.5 | 0.30 |
| JFC1245-1150FS | 1.50 | 75.9 | 0.39 | ||
| JFC1245-1200FS | 2.00 | 55.0 | 0.90 | ||
| JFC1245-1250FS | 2.50 | 49.5 | 1.49 | ||
| JFC1245-1315FS | 3.15 | 36.3 | 3.30 | ||
| JFC1245-1500FS | 5.00 | 125V DC 250V AC | 1KA@32V DC 500A@72V DC 300A@125V DC 100A@250V AC | 19.8 | 23.0 |
| JFC1245-2100FS | 10.0 | 7.97 | 91.0 | ||
| JFC1245-2150FS | 15.0 | 4.46 | 203 | ||
| JFC1245-2200FS | 20.0 | 3.27 | 360 | ||
| JFC1245-2250FS | 25.0 | 2.22 | 563 | ||
| JFC1245-2300FS | 30.0 | 1.96 | 810 | ||
| JFC1245-2400FS | 40.0 | 1.19 | 1360 | ||
| JFC1245-2500FS | 50.0 | 0.99 | 1949 | ||
| JFC1245-2600FS | 60.0 | 0.80 | 2887 | ||
| JFC1245-2800FS | 80.0 | 0.66 | 5270 | ||
| JFC1245-3100FS | 100.0 | 0.55 | 8080 |
