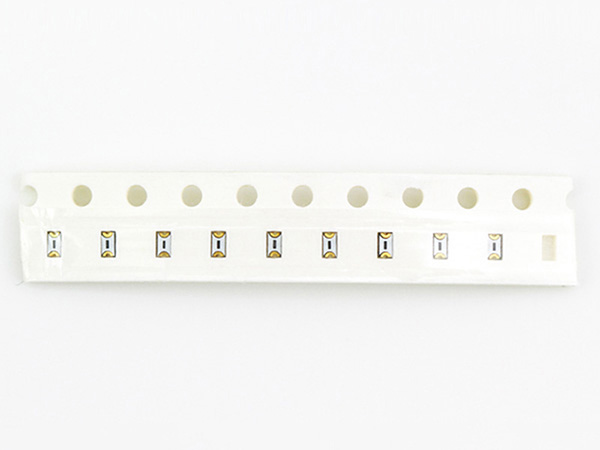

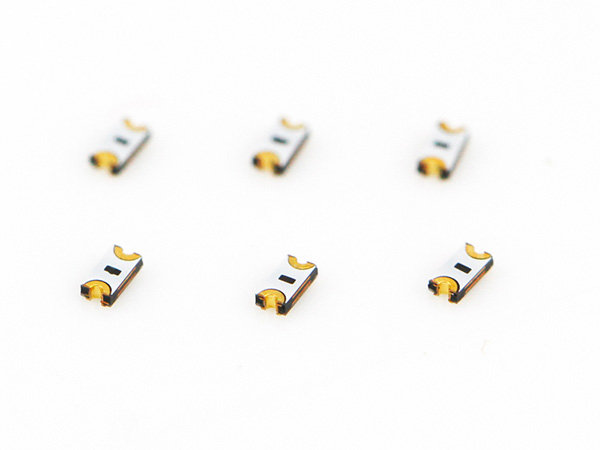

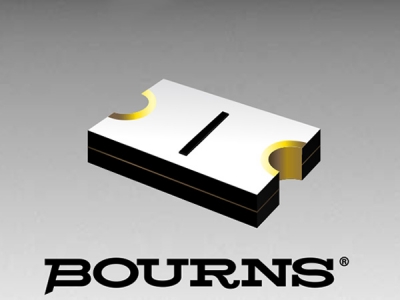

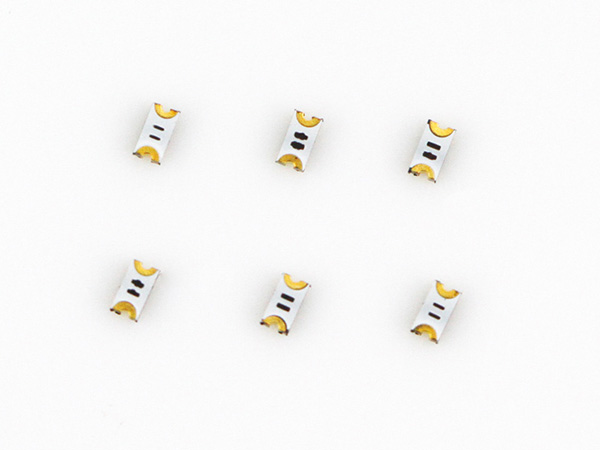

Bourns伯恩斯MF-FSMF系列自恢復保險絲屬表面貼裝保險絲，封裝尺寸為0603，小體積，緊湊設計，節省板子空間；反應時間快。符合RoHS標準*且無鹵素**。
Model | Vmax. (V) | Imax. (A) | Ihold at23℃ (A) | Itrip @23℃ (A) | Pd typ. (W) | Maximum Time To Trip @23℃ | Resistance @23℃ | ||
Current (A) | Time (Sec.) | Rimin. (Ω) | R1max. (Ω) | ||||||
MF-FSMF010X | 15 | 40 | 0.10 | 0.30 | 0.5 | 0.50 | 1.0 | 0.90 | 6.00 |
MF-FSMF020X | 9 | 40 | 0.20 | 0.50 | 0.5 | 1.00 | 0.6 | 0.55 | 3.50 |
MF-FSMF025X | 6 | 40 | 0.25 | 0.75 | 0.5 | 8.00 | 0.1 | 0.20 | 1.40 |
MF-FSMF035X | 6 | 40 | 0.35 | 0.75 | 0.5 | 8.00 | 0.1 | 0.20 | 1.40 |
MF-FSMF050X | 6 | 40 | 0.50 | 1.00 | 0.5 | 8.00 | 0.1 | 0.10 | 0.80 |
Model | A | B | C | D | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | |
| MF-FSMF010X | 1.45/0.057 | 1.85/0.073 | 0.65/0.026 | 1.05/0.041 | 0.3/0.012 | 0.65/0.026 | 0.2/0.008 |
| MF-FSMF020X | |||||||
| MF-FSMF025X | |||||||
| MF-FSMF035X | |||||||
| MF-FSMF050X | 0.65/0.026 | 1/0.039 | |||||
DIMENSIONS:MM/INCHES
Bourns伯恩斯MF-FSMF系列規格書
