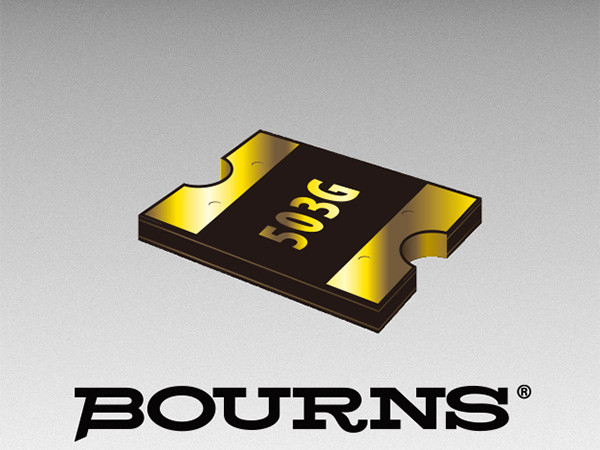

Bourns伯恩斯MF-SMDF系列自恢復(fù)保險絲
Bourns伯恩斯MF-MSMF系列自恢復(fù)保險絲屬表面貼裝保險絲，封裝尺寸為2018，超快的跳閘時間，高電壓，符合RoHS標準*且無鹵素**。
- 品牌： 伯恩斯/Bourns
- 分類： SMD自恢復(fù)保險絲
- 最大電壓： 10~60V
- 額定電流： 0.3A~2.6A
- 封裝： 2018封裝
Bourns伯恩斯MF-SMDF系列規(guī)格書Model | Vmax. (V) | Imax. (A) | Ihold at23℃ (A) | Itrip @23℃ (A) | Pd typ. (W) | Maximum Time To Trip @23℃ | Resistance @23℃ | ||
Current (A) | Time (Sec.) | Rimin. (Ω) | R1max. (Ω) | ||||||
MF-SMDF030 | 60 | 20 | 0.30 | 0.8 | 0.8 | 1.5 | 1.2 | 0.45 | 2.15 |
MF-SMDF050 | 60 | 10 | 0.55 | 1.2 | 0.9 | 2.5 | 3.0 | 0.20 | 1.00 |
MF-SMDF100/33X | 33 | 40 | 1.10 | 2.2 | 1.4 | 8.0 | 0.5 | 0.06 | 0.40 |
MF-SMDF150 | 15 | 40 | 1.50 | 3.0 | 1.1 | 8.0 | 0.8 | 0.05 | 0.17 |
MF-SMDF200 | 10 | 40 | 2.00 | 4.0 | 1.1 | 8.0 | 2.4 | 0.03 | 0.10 |
MF-SMDF260/24X | 24 | 20 | 2.60 | 5.2 | 1.5 | 8.0 | 5.0 | 0.015 | 0.075 |

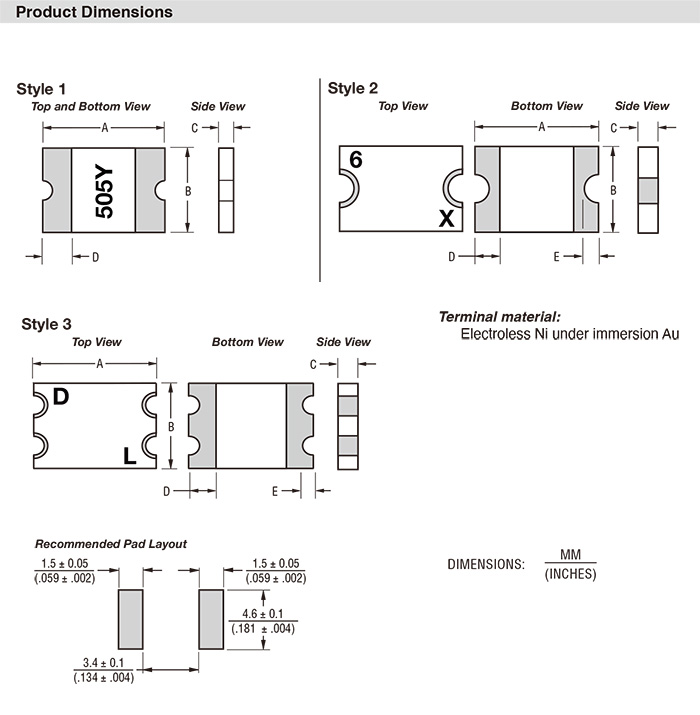

Model | A | B | C | D | E | Style | ||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | Max. | ||
| MF-SMDF030 | 4.72/0.186 | 5.44/0.214 | 4.22/0.166 | 4.93/0.194 | 0.79/0.031 | 1.09/0.043 | 0.3/0.012 | N/A | N/A | 1 |
| MF-SMDF050 | 4.72/0.186 | 5.44/0.214 | 4.22/0.166 | 4.93/0.194 | 0.79/0.031 | 1.09/0.043 | 0.3/0.012 | N/A | N/A | 1 |
| MF-SMDF100/33X | 4.72/0.186 | 5.44/0.214 | 4.22/0.166 | 4.93/0.194 | 0.70/0.028 | 1.25/0.049 | 0.3/0.012 | 0.25/0.01 | 0.7/0.028 | 2 |
| MF-SMDF150 | 4.72/0.186 | 5.44/0.214 | 4.22/0.166 | 4.93/0.194 | 0.55/0.022 | 0.85/0.033 | 0.3/0.012 | N/A | N/A | 1 |
| MF-SMDF200 | 4.72/0.186 | 5.44/0.214 | 4.22/0.166 | 4.93/0.194 | 0.55/0.022 | 0.85/0.033 | 0.3/0.012 | N/A | N/A | 1 |
| MF-SMDF260/24X | 4.72/0.186 | 5.44/0.214 | 4.22/0.166 | 4.93/0.194 | 0.70/0.028 | 2/0.079 | 0.3/0.012 | 0.25/0.01 | 0.7/0.028 | 3 |
DIMENSIONS:MM/(INCHES)
