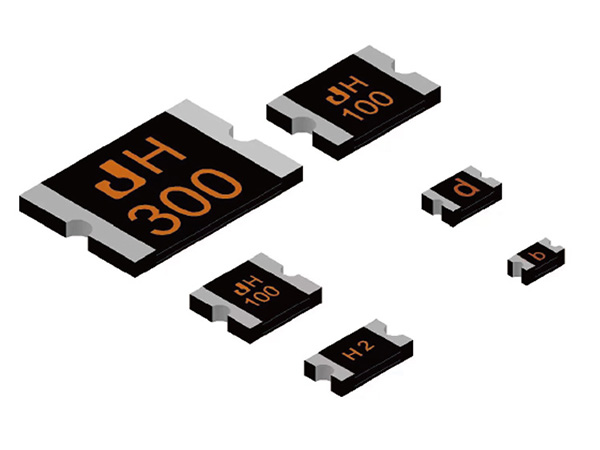

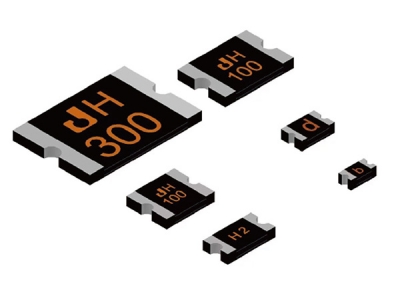

集電通高溫自恢復保險絲
集電通高溫自恢復保險絲耐高溫串聯型，提供表面安裝的可復位過電流保護。該系列在保持電流和工作電壓方面提供了完整的產品組合，應用廣泛。
- 品牌： 集電通/JTDFUSE
- 分類： 高溫自恢復保險絲
- 最大電壓： 16~33V
- 額定電流： 0.1A~4A
高溫保險絲規格書
Model | Ihold @25℃ (A) | Itrip @25℃ (A) | Vmax (Vdc) | Imax (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
ASMD0603H010 | 0.10 | 0.50 | 24 | 40 | 0.5 | 2.5 | 1.5 | 0.90 | 8.5 |
ASMD0603H016 | 0.16 | 0.48 | 24 | 40 | 0.5 | 8.0 | 0.1 | 0.60 | 6.0 |
ASMD0603H020 | 0.20 | 0.60 | 16 | 40 | 0.6 | 8.0 | 0.5 | 0.35 | 4.5 |
ASMD0603H035 | 0.35 | 1.05 | 16 | 40 | 0.6 | 8.0 | 0.5 | 0.30 | 4.0 |
ASMD0805H010 | 0.10 | 0.50 | 24 | 40 | 0.9 | 2.5 | 1.5 | 0.80 | 6.5 |
ASMD0805H020 | 0.20 | 0.60 | 24 | 40 | 0.9 | 8.0 | 0.1 | 0.45 | 5.0 |
ASMD0805H035 | 0.35 | 1.05 | 16 | 40 | 0.9 | 8.0 | 0.1 | 0.30 | 1.9 |
ASMD0805H050 | 0.50 | 1.50 | 16 | 40 | 0.9 | 8.0 | 0.1 | 0.25 | 1.6 |
ASMD0805H075 | 0.75 | 2.25 | 16 | 40 | 0.9 | 8.0 | 1.0 | 0.13 | 1.2 |
ASMD1206H016 | 0.16 | 0.80 | 30 | 20 | 1.0 | 8.0 | 0.1 | 0.40 | 6.0 |
ASMD1206H020 | 0.20 | 1.00 | 30 | 20 | 1.0 | 8.0 | 0.1 | 0.35 | 5.0 |
ASMD1206H035 | 0.35 | 1.05 | 24 | 40 | 1.0 | 8.0 | 0.1 | 0.20 | 1.6 |
ASMD1206H050 | 0.50 | 1.50 | 16 | 40 | 1.0 | 8.0 | 0.1 | 0.14 | 1.2 |
ASMD1206H050-24V | 0.50 | 1.50 | 24 | 40 | 1.2 | 8.0 | 0.1 | 0.14 | 1.2 |
ASMD1206H075 | 0.75 | 2.25 | 16 | 40 | 1.0 | 8.0 | 5.0 | 0.08 | 0.7 |
ASMD1206H075-24V | 0.75 | 2.25 | 24 | 40 | 1.2 | 8.0 | 0.5 | 0.08 | 0.7 |
ASMD1206H110 | 1.10 | 3.30 | 16 | 40 | 1.0 | 8.0 | 5.0 | 0.06 | 0.45 |
ASMD1206H125 | 1.25 | 3.75 | 16 | 40 | 1.0 | 8.0 | 5.0 | 0.05 | 0.35 |
ASMD1210H110 | 1.10 | 3.30 | 16 | 40 | 1.5 | 8.0 | 5.0 | 0.06 | 0.50 |
ASMD1210H125 | 1.25 | 3.75 | 16 | 40 | 1.5 | 8.0 | 4.0 | 0.03 | 0.30 |
ASMD1210H150 | 1.50 | 4.50 | 16 | 40 | 1.5 | 8.0 | 5.0 | 0.025 | 0.25 |
ASMD1210H175 | 1.75 | 5.25 | 16 | 40 | 1.5 | 8.0 | 5.0 | 0.02 | 0.20 |
ASMD1812H050 | 0.50 | 1.50 | 30 | 40 | 1.2 | 8.0 | 0.1 | 0.12 | 1.20 |
ASMD1812H075 | 0.75 | 2.25 | 30 | 40 | 1.5 | 8.0 | 5.0 | 0.09 | 0.75 |
ASMD1812H110 | 1.10 | 3.30 | 24 | 40 | 1.5 | 8.0 | 5.0 | 0.038 | 0.35 |
ASMD1812H125 | 1.25 | 3.75 | 24 | 40 | 1.5 | 8.0 | 5.0 | 0.030 | 0.30 |
ASMD1812H150 | 1.50 | 4.50 | 24 | 40 | 1.5 | 8.0 | 5.0 | 0.022 | 0.20 |
ASMD1812H150-33V | 1.50 | 4.50 | 33 | 40 | 1.5 | 8.0 | 5.0 | 0.022 | 0.20 |
ASMD1812H175 | 1.75 | 5.25 | 24 | 40 | 1.5 | 8.0 | 5.0 | 0.018 | 0.17 |
ASMD1812H200 | 2.00 | 6.00 | 24 | 40 | 1.5 | 10.0 | 5.0 | 0.015 | 0.12 |
ASMD1812H200-30V | 2.00 | 6.00 | 30 | 40 | 1.5 | 8.0 | 5.0 | 0.015 | 0.12 |
ASMD1812H250 | 2.50 | 7.50 | 24 | 40 | 1.5 | 12.5 | 5.0 | 0.013 | 0.09 |
ASMD2920H260 | 2.60 | 7.80 | 24 | 40 | 3.0 | 13.0 | 5.0 | 0.007 | 0.065 |
ASMD2920H300 | 3.00 | 9.00 | 24 | 40 | 3.0 | 15.0 | 5.0 | 0.006 | 0.065 |
ASMD2920H330 | 3.30 | 9.90 | 24 | 40 | 3.0 | 16.5 | 5.0 | 0.005 | 0.045 |
ASMD2920H350 | 3.50 | 10.5 | 24 | 40 | 3.0 | 17.0 | 5.0 | 0.005 | 0.040 |
ASMD2920H400 | 4.00 | 12.0 | 24 | 40 | 3.0 | 20.0 | 5.0 | 0.004 | 0.035 |
V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流.
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.
Model | A | B | C | D | E | Packaging | ||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | (Pcs/Reel) | |
ASMD0603H010 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 0.80 | 0.15 | 0.50 | 0.05 | 4000 |
ASMD0603H016 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 0.80 | 0.15 | 0.50 | 0.05 | 4000 |
ASMD0603H020 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 0.80 | 0.15 | 0.50 | 0.05 | 4000 |
ASMD0603H035 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 0.80 | 0.15 | 0.50 | 0.05 | 4000 |
ASMD0805H010 | 2.00 | 2.30 | 1.20 | 1.50 | 0.40 | 0.90 | 0.20 | 0.55 | 0.10 | 5000 |
ASMD0805H020 | 2.00 | 2.30 | 1.20 | 1.50 | 0.40 | 0.90 | 0.20 | 0.55 | 0.10 | 5000 |
ASMD0805H035 | 2.00 | 2.30 | 1.20 | 1.50 | 0.40 | 0.90 | 0.20 | 0.55 | 0.10 | 5000 |
ASMD0805H050 | 2.00 | 2.30 | 1.20 | 1.50 | 0.40 | 0.90 | 0.20 | 0.55 | 0.10 | 5000 |
ASMD0805H075 | 2.00 | 2.30 | 1.20 | 1.50 | 0.65 | 1.15 | 0.20 | 0.55 | 0.10 | 4000 |
ASMD1206H016 | 3.00 | 3.40 | 1.40 | 1.80 | 0.35 | 0.85 | 0.25 | 0.75 | 0.10 | 5000 |
ASMD1206H020 | 3.00 | 3.40 | 1.40 | 1.80 | 0.35 | 0.85 | 0.25 | 0.75 | 0.10 | 5000 |
ASMD1206H035 | 3.00 | 3.40 | 1.40 | 1.80 | 0.35 | 0.85 | 0.25 | 0.75 | 0.10 | 5000 |
ASMD1206H050 | 3.00 | 3.40 | 1.40 | 1.80 | 0.35 | 0.85 | 0.25 | 0.75 | 0.10 | 5000 |
ASMD1206H050-24V | 3.00 | 3.40 | 1.40 | 1.80 | 0.65 | 1.15 | 0.25 | 0.75 | 0.10 | 3500 |
ASMD1206H075 | 3.00 | 3.40 | 1.40 | 1.80 | 0.35 | 0.85 | 0.25 | 0.75 | 0.10 | 5000 |
ASMD1206H075-24V | 3.00 | 3.40 | 1.40 | 1.80 | 0.65 | 1.15 | 0.25 | 0.75 | 0.10 | 3500 |
ASMD1206H110 | 3.00 | 3.40 | 1.40 | 1.80 | 0.65 | 1.15 | 0.25 | 0.75 | 0.10 | 3500 |
ASMD1206H125 | 3.00 | 3.40 | 1.40 | 1.80 | 0.65 | 1.15 | 0.25 | 0.75 | 0.10 | 3500 |
ASMD1210H110 | 3.00 | 3.43 | 2.35 | 2.80 | 0.35 | 0.85 | 0.25 | 0.75 | 0.10 | 4000 |
ASMD1210H125 | 3.00 | 3.43 | 2.35 | 2.80 | 0.65 | 1.15 | 0.25 | 0.75 | 0.10 | 3500 |
ASMD1210H150 | 3.00 | 3.43 | 2.35 | 2.80 | 0.65 | 1.15 | 0.25 | 0.75 | 0.10 | 3500 |
ASMD1210H175 | 3.00 | 3.43 | 2.35 | 2.80 | 0.65 | 1.15 | 0.25 | 0.75 | 0.10 | 3500 |
ASMD1812H050 | 4.37 | 4.73 | 3.07 | 3.41 | 0.35 | 0.85 | 0.30 | 1.20 | 0.20 | 2000 |
ASMD1812H075 | 4.37 | 4.73 | 3.07 | 3.41 | 0.35 | 0.85 | 0.30 | 1.20 | 0.20 | 2000 |
ASMD1812H110 | 4.37 | 4.73 | 3.07 | 3.41 | 0.65 | 1.15 | 0.30 | 1.20 | 0.20 | 1500 |
ASMD1812H125 | 4.37 | 4.73 | 3.07 | 3.41 | 0.65 | 1.15 | 0.30 | 1.20 | 0.20 | 1500 |
ASMD1812H150 | 4.37 | 4.73 | 3.07 | 3.41 | 0.65 | 1.15 | 0.30 | 1.20 | 0.20 | 1500 |
ASMD1812H150-33V | 4.37 | 4.73 | 3.07 | 3.41 | 1.00 | 1.50 | 0.30 | 1.20 | 0.20 | 1000 |
ASMD1812H175 | 4.37 | 4.73 | 3.07 | 3.41 | 0.65 | 1.15 | 0.30 | 1.20 | 0.20 | 1500 |
ASMD1812H200 | 4.37 | 4.73 | 3.07 | 3.41 | 1.00 | 1.50 | 0.30 | 1.20 | 0.20 | 1000 |
ASMD1812H200-30V | 4.37 | 4.73 | 3.07 | 3.41 | 1.00 | 1.50 | 0.30 | 1.20 | 0.20 | 1000 |
ASMD1812H250 | 4.37 | 4.73 | 3.07 | 3.41 | 1.00 | 1.50 | 0.30 | 1.20 | 0.20 | 1000 |
ASMD2920H260 | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.00 | 0.30 | 2.50 | 0.25 | 1500 |
ASMD2920H300 | 6.73 | 7.98 | 4.80 | 5.44 | 0.60 | 1.00 | 0.30 | 2.50 | 0.25 | 1500 |
ASMD2920H330 | 6.73 | 7.98 | 4.80 | 5.44 | 1.00 | 1.50 | 0.30 | 2.50 | 0.25 | 1500 |
ASMD2920H350 | 6.73 | 7.98 | 4.80 | 5.44 | 1.00 | 1.50 | 0.30 | 2.50 | 0.25 | 1500 |
ASMD2920H400 | 6.73 | 7.98 | 4.80 | 5.44 | 1.00 | 1.50 | 0.30 | 2.50 | 0.25 | 1500 |
