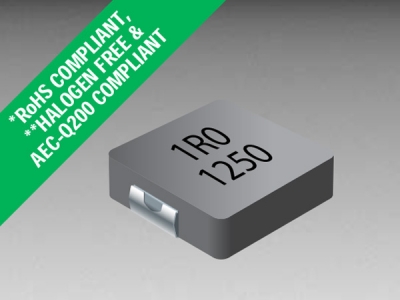

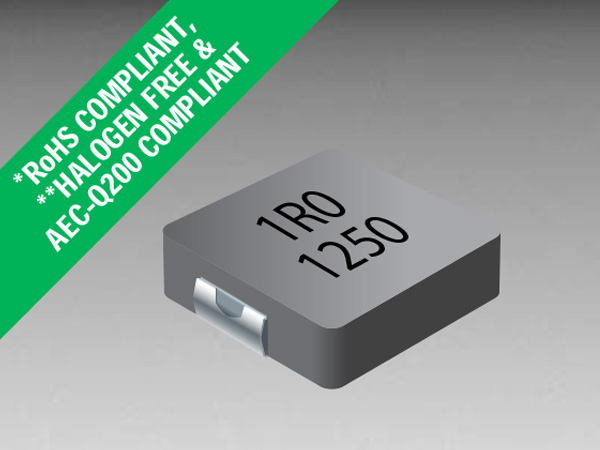

Bourns伯恩斯電感器SRP7028A列
Bourns伯恩斯SRP7028A系列電感器主要材料為羰基粉末鐵芯，漆包銅電線，Sn表面處理端子
- 品牌： Bourns/伯恩斯
- 分類： 貼片電感器
- 最大電壓： -
- 額定電流： -
Part No. | Inductance @1kHz/1V | Q Min. | SRF Typ. | DCR Typ. | DCR Max. | I rms | I sat | Terminal Type | |
L(μH) | Tol. % | @1kHz/1V | (MHz) | （mΩ） | （mΩ） | (A) | （A） | ||
SRP7028A-R10Y | 0.10 | ±20 | 5 | 300 | 1.2 | 1.7 | 32.5 | 60 | Lead Fream |
SRP7028A-R15Y | 0.15 | ±30 | 5 | 220 | 1.5 | 1.9 | 27.0 | 45 | |
SRP7028A-R22Y | 0.22 | ±20 | 5 | 150 | 2.1 | 2.8 | 23.0 | 40 | |
SRP7028A-R33M | 0.33 | ±20 | 10 | 140 | 3.5 | 3.9 | 20.0 | 32 | |
SRP7028A-R47M | 0.47 | ±20 | 10 | 80 | 4.0 | 4.2 | 17.5 | 26 | |
SRP7028A-R56M | 0.56 | ±20 | 15 | 70 | 4.7 | 5.0 | 16.5 | 25.5 | |
SRP7028A-R68M | 0.68 | ±20 | 15 | 67 | 4.8 | 5.5 | 15.5 | 25 | |
SRP7028A-R75M | 0.75 | ±20 | 15 | 65 | 5.5 | 6.6 | 14.5 | 24.5 | |
SRP7028A-R82M | 0.82 | ±20 | 15 | 61 | 6.7 | 8.0 | 13.0 | 24 | |
SRP7028A-1R0M | 1.0 | ±20 | 20 | 58 | 8.3 | 10 | 11.0 | 22 | |
SRP7028A-1R5M | 1.5 | ±20 | 20 | 38 | 13 | 15 | 9.0 | 18 | |
SRP7028A-1R8M | 1.8 | ±20 | 20 | 36 | 14 | 17 | 8.5 | 16 | |
SRP7028A-2R2M | 2.2 | ±20 | 20 | 32 | 18 | 20 | 8.0 | 14 | |
SRP7028A-2R5M | 2.5 | ±20 | 20 | 30 | 20 | 22 | 7.0 | 13 | |
SRP7028A-3R3M | 3.3 | ±20 | 20 | 25 | 28 | 30 | 6.0 | 12 | |
SRP7028A-4R7M | 4.7 | ±20 | 20 | 21 | 37 | 40 | 5.5 | 10 | |
SRP7028A-5R6M | 5.6 | ±20 | 20 | 19 | 43 | 48 | 5.0 | 9.0 | |
SRP7028A-6R8M | 6.8 | ±20 | 20 | 18 | 54 | 60 | 4.5 | 8.0 | |
SRP7028A-8R2M | 8.2 | ±20 | 20 | 17 | 64 | 68 | 4.0 | 7.5 | |
SRP7028A-100M | 10 | ±20 | 20 | 14 | 75 | 85 | 3.5 | 6.0 | |
SRP7028A-150M | 15 | ±20 | 20 | 12 | 107 | 123 | 3.0 | 4.0 | |
SRP7028A-220M | 22 | ±20 | 20 | 10 | 165 | 190 | 2.0 | 3.5 | |
SRP7028A-330M | 33 | ±20 | 20 | 8 | 200 | 240 | 2.0 | 2.5 | |
