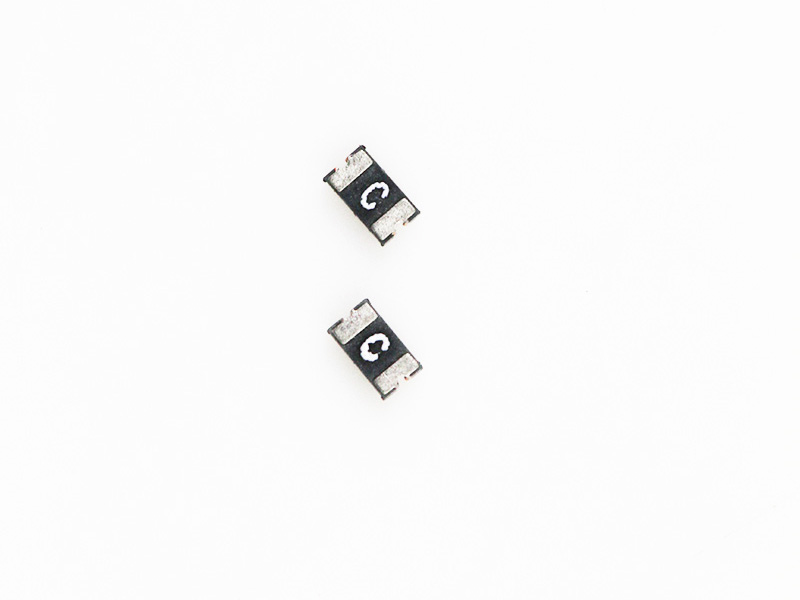

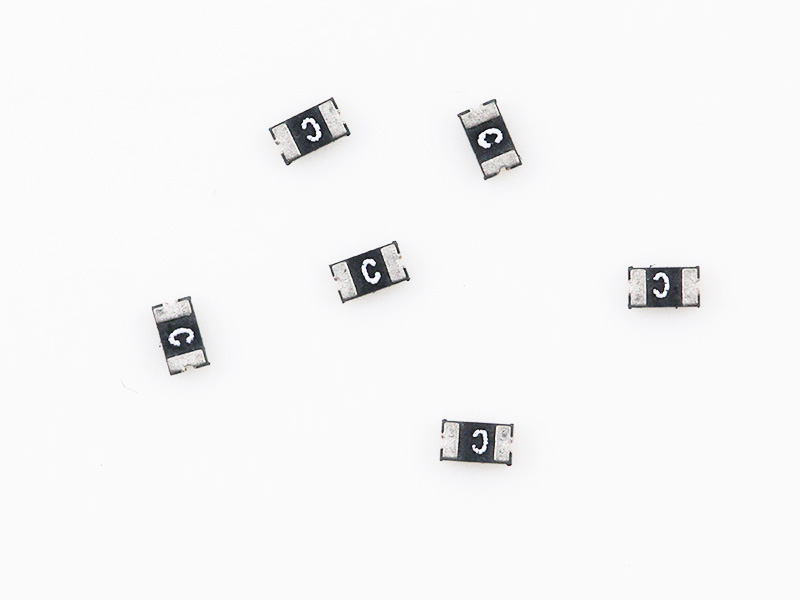

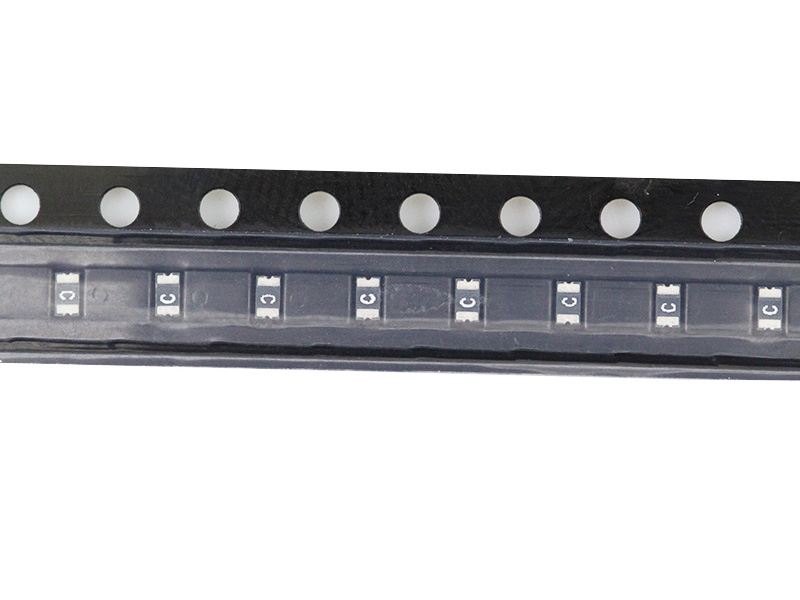

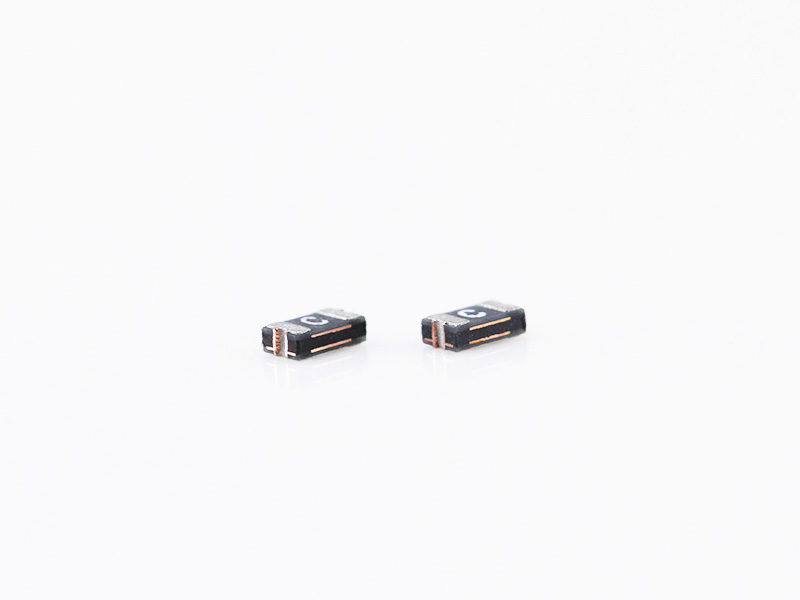

The 0805L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Part Number | Marking | Ihold (A) | Itrip (A) | Vmax (Vdc) | Imax (A) | Pdtyp. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rmin (Ω) | R1max (Ω) | |||||||
| 0805L005/30 | f3 | 0.05 | 0.15 | 30 | 40 | 0.50 | 0.25 | 1.50 | 3.600 | 20.000 |
0805L010 | A | 0.10 | 0.30 | 15 | 100 | 0.5 | 0.50 | 1.50 | 1.000 | 6.000 |
0805L010/24 | J | 0.10 | 0.30 | 24 | 100 | 0.5 | 0.50 | 1.50 | 1.500 | 6.000 |
0805L020 | C | 0.20 | 0.50 | 9 | 100 | 0.5 | 8.00 | 0.02 | 0.650 | 3.500 |
0805L035 | E | 0.35 | 0.75 | 6 | 100 | 0.5 | 8.00 | 0.10 | 0.250 | 1.200 |
0805L050 | F | 0.50 | 1.00 | 6 | 100 | 0.5 | 8.00 | 0.10 | 0.150 | 0.850 |
0805L075 | G | 0.75 | 1.50 | 6 | 40 | 0.6 | 8.00 | 0.20 | 0.090 | 0.350 |
0805L100 | N | 1.00 | 1.95 | 6 | 40 | 0.6 | 8.00 | 0.30 | 0.060 | 0.210 |
0805L110 | H | 1.10 | 2.00 | 6 | 100 | 0.8 | 8.00 | 0.10 | 0.050 | 0.160 |
Part Number | A | B | C | D | E | |||||||||||||||
Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | |||||||||||
Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
0805L005/30 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L010 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.02 | 0.04 | 0.55 | 1.00 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L010/24 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.02 | 0.04 | 0.55 | 1.00 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L020 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.02 | 0.04 | 0.55 | 1.00 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L035 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.02 | 0.03 | 0.45 | 0.75 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L050 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L075 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L100 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.02 | 0.07 | 0.50 | 1.80 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
0805L110 | 0.08 | 0.09 | 2.00 | 2.20 | 0.05 | 0.06 | 1.20 | 1.50 | 0.03 | 0.06 | 0.80 | 1.40 | 0.01 | 0.02 | 0.20 | 0.55 | 0.002 | 0.02 | 0.05 | 0.45 |
