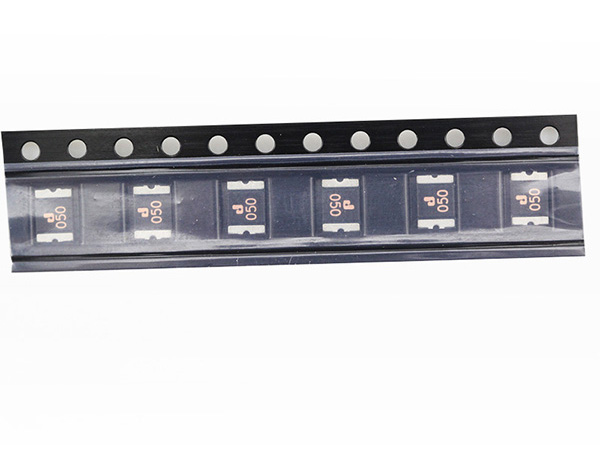

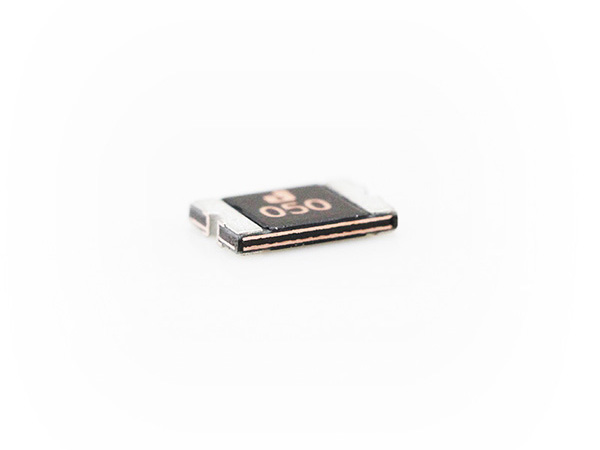

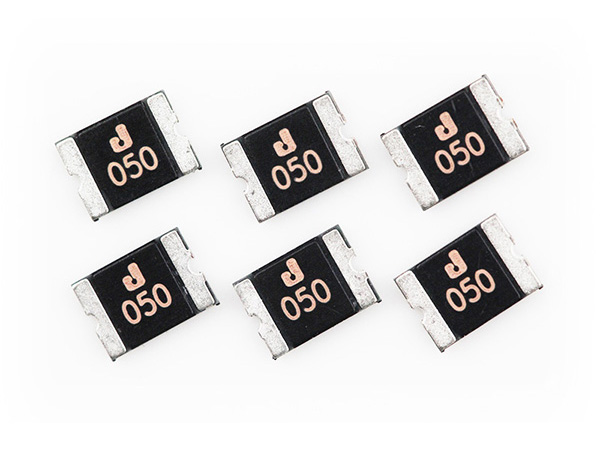

The ASMD1812 series provides surface mountresettable overcurrent protection with holding currentfrom 0.1A to 3.5A.This series offers complete portfolio in terms ofholding current and working voltage, and is suitable forwide range of applications
JDT FUSE | Vmax (Vdc) | Imax (A) | Ihold @25℃ (A) | Itrip @25℃ (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
ASMD1812-010 | 30.0 | 100 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 |
ASMD1812-010-33V | 33.0 | 100 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 |
ASMD1812-010-60V | 60.0 | 100 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 |
ASMD1812-014 | 60.0 | 100 | 0.14 | 0.34 | 0.8 | 1.5 | 0.15 | 0.650 | 6.000 |
ASMD1812-014-33V | 33.0 | 100 | 0.14 | 0.34 | 0.8 | 1.5 | 0.15 | 0.650 | 6.000 |
ASMD1812-020 | 30.0 | 100 | 0.20 | 0.40 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 |
ASMD1812-020-33V | 33.0 | 100 | 0.20 | 0.40 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 |
ASMD1812-020-60V | 60.0 | 100 | 0.20 | 0.40 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 |
ASMD1812-030 | 30.0 | 100 | 0.30 | 0.60 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 |
ASMD1812-030-33V | 33.0 | 100 | 0.30 | 0.60 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 |
ASMD1812-030-60V | 60.0 | 100 | 0.30 | 0.60 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 |
ASMD1812-050 | 15.0 | 100 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 |
ASMD1812-050-33V | 33.0 | 100 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 |
ASMD1812-050-60V | 60.0 | 100 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.400 |
ASMD1812-075 | 13.2 | 100 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 |
ASMD1812-075-24V | 24.0 | 100 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 |
ASMD1812-110 | 8.00 | 100 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.045 | 0.250 |
ASMD1812-110-16V | 16.0 | 100 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.045 | 0.250 |
ASMD1812-110-24V | 24.0 | 100 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.045 | 0.250 |
ASMD1812-110-33V | 33.0 | 100 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.045 | 0.250 |
ASMD1812-125 | 16.0 | 100 | 1.25 | 2.50 | 0.8 | 8.0 | 0.40 | 0.050 | 0.160 |
ASMD1812-150 | 8.00 | 100 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 |
ASMD1812-150-12V | 12.0 | 100 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 |
ASMD1812-150-24V | 24.0 | 100 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 |
ASMD1812-160 | 8.00 | 100 | 1.60 | 2.80 | 0.8 | 8.0 | 1.00 | 0.030 | 0.130 |
ASMD1812-200 | 8.00 | 100 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 |
ASMD1812-200-16V | 16.0 | 100 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 |
ASMD1812-200-24V | 24.0 | 100 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.120 |
ASMD1812-260 | 8.00 | 100 | 2.60 | 5.00 | 0.8 | 8.0 | 2.50 | 0.010 | 0.050 |
ASMD1812-260-16V | 16.0 | 100 | 2.60 | 5.00 | 0.8 | 8.0 | 2.50 | 0.010 | 0.050 |
ASMD1812-300 | 8.00 | 100 | 3.00 | 5.00 | 0.8 | 8.0 | 4.00 | 0.010 | 0.040 |
ASMD1812-300-12V | 12.0 | 100 | 3.00 | 5.00 | 0.8 | 8.0 | 4.00 | 0.010 | 0.040 |
ASMD1812-300-16V | 16.0 | 100 | 3.00 | 5.00 | 0.8 | 8.0 | 4.00 | 0.010 | 0.040 |
ASMD1812-350 | 6.00 | 100 | 3.50 | 6.00 | 2.0 | 10.0 | 4.00 | 0.008 | 0.035 |
ASMD1812-350-16V | 16.0 | 100 | 3.50 | 6.00 | 2.0 | 10.0 | 4.00 | 0.008 | 0.030 |
ASMD1812-400 | 6.00 | 100 | 4.00 | 7.00 | 2.0 | 10.0 | 4.00 | 0.005 | 0.025 |
Model | A | B | C | D | E | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| ASMD1812-010 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-010-33V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-010-60V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-014 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-014-33V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-020 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-020-33V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-020-60V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-030 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-030-33V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-030-60V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-050 | 4.37 | 4.73 | 3.07 | 3.41 | 0.4 | 1.1 | 0.3 | 0.25 |
| ASMD1812-050-33V | 4.37 | 4.73 | 3.07 | 3.41 | 0.4 | 1.0 | 0.3 | 0.25 |
| ASMD1812-050-60V | 4.37 | 4.73 | 3.07 | 3.41 | 0.6 | 1.5 | 0.3 | 0.25 |
| ASMD1812-075 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-075-24V | 4.37 | 4.73 | 3.07 | 3.41 | 0.6 | 1.3 | 0.3 | 0.25 |
| ASMD1812-075-33V | 4.37 | 4.73 | 3.07 | 3.41 | 0.6 | 1.3 | 0.3 | 0.25 |
| ASMD1812-110 | 4.37 | 4.73 | 3.07 | 3.41 | 0.4 | 1.0 | 0.3 | 0.25 |
| ASMD1812-110-16V | 4.37 | 4.73 | 3.07 | 3.41 | 0.4 | 1.0 | 0.3 | 0.25 |
| ASMD1812-110-24V | 4.37 | 4.73 | 3.07 | 3.41 | 0.6 | 1.3 | 0.3 | 0.25 |
| ASMD1812-110-33V | 4.37 | 4.73 | 3.07 | 3.41 | 0.6 | 1.3 | 0.3 | 0.25 |
| ASMD1812-125 | 4.37 | 4.73 | 3.07 | 3.41 | 0.4 | 1.0 | 0.3 | 0.25 |
| ASMD1812-150 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-150-12V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-150-24V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-160 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-200 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-200-16V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.1 | 0.3 | 0.25 |
| ASMD1812-200-24V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.5 | 0.3 | 0.25 |
| ASMD1812-260 | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.5 | 0.3 | 0.25 |
| ASMD1812-260-16V | 4.37 | 4.73 | 3.07 | 3.41 | 0.5 | 1.5 | 0.3 | 0.25 |
| ASMD1812-300 | 4.37 | 4.73 | 3.07 | 3.41 | 0.8 | 1.5 | 0.3 | 0.25 |
| ASMD1812-300-12V | 4.37 | 4.73 | 3.07 | 3.41 | 0.8 | 1.5 | 0.3 | 0.25 |
| ASMD1812-300-16V | 4.37 | 4.73 | 3.07 | 3.41 | 0.8 | 1.5 | 0.3 | 0.25 |
| ASMD1812-350 | 4.37 | 4.73 | 3.07 | 3.41 | 0.8 | 1.5 | 0.3 | 0.25 |
| ASMD1812-350-16V | 4.37 | 4.73 | 3.07 | 3.41 | 0.8 | 1.5 | 0.3 | 0.25 |
| ASMD1812-400 | 4.37 | 4.73 | 3.07 | 3.41 | 0.8 | 1.5 | 0.3 | 0.25 |
